主要技术指标：

 DC ... 200 kHz full range bandwidth

 DC up to 1 MHz (small signal -3 dB)

 Rise time / fall time up to 50 V/μs

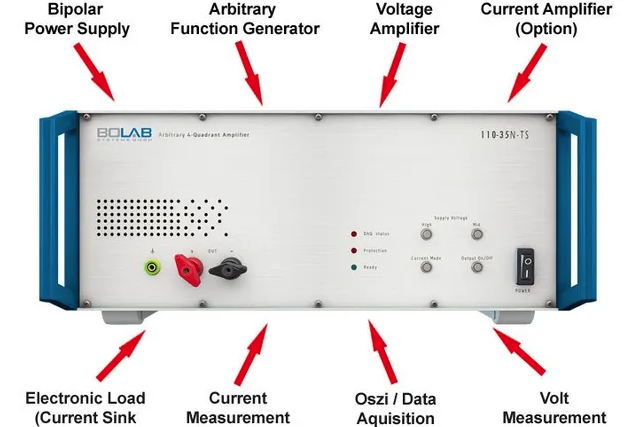

 Arbitrary function with almost endless data streams for waveform generation

 Internal resistor 0 ... 200 mΩ (Option)

 Analogue input 0 ... ±10 V for voltage control

 Option for running as current amplifier

 Monitor outputs for measured values of voltage and current

 WaveMaster software for waveform generation and data recording

 Modularly expandable up to 18 kW

 USB interface standard

 Voltage resolution less than 0.001 V

 Linearity 0,1% DC

 DC - Offset < 1 mV

12V/24V/48V车载测试系统

我们的测试系统满足以下标准

LV124/LV148/VDA320

BMW GS 95024/BMW GS 95026

Mercedes MBN LV 124-1 | Mercedes MBN LV 148

Volkswagen VW 80000

JLR | PSA | GMW

电压最高100V，电流最大700A！
